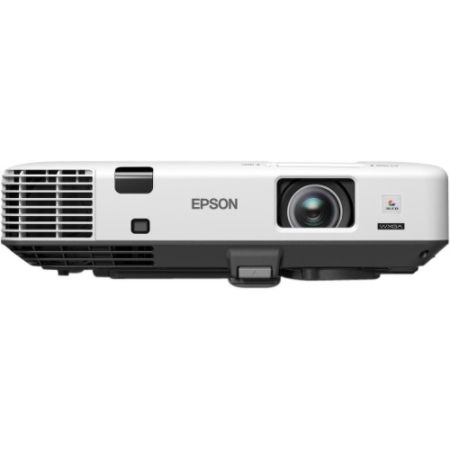

Epson® PowerLite WXGA 3LCD Projector, PD4697 Item # 3311650
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
3311650
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Project brilliant presentations
- Highly portable design makes it easy to carry the projector between meeting rooms and classrooms or install it in a small- to medium-size venue.
- Features WXGA (1280 x 800) native resolution and 1080p (1920 x 1080) maximum resolution to project vibrant, realistic images in virtually any setting.
- Easy-slide horizontal keystone correction lets you place the projector almost anywhere in a room and adjust for perfectly rectangular images.
- Up to 4,200 lumens of brightness provides bright, crisp visuals.
- Up to 280" viewable screen size (diagonal).
- Offers up to 4,000 hours of lamp life in eco mode and up to 2,500 hours of lamp life in normal mode for extended operation.
- Features DisplayPort, HDMI, VGA 15-pin D-sub, RCA, RJ-45 Ethernet and RS-232c serial inputs. VGA 15-pin D-sub, USB Type-A and USB Type-B outputs allow flexible connectivity options.
Product Details
| Item # | 3311650 |
| OfficeMax # | 23432171 |
| Manufacturer # | PD4697 |
| Ethernet Technology | Fast Ethernet |
| Number of Lamps | 1 |
| Parts Warranty/Labor | 3 Month - Lamp |
| DisplayPort | Yes |
| lamp type | UHE |
| Product Series | 1900 |
| white brightness (white light output) | 4,200 lumens |
| Throw Ratio | 1.38 to 2.24:1 |
| Zoom Type | Manual Zoom |
| image technology | LCD |
| native resolution | WXGA (1280 x 800) |
| USB Standard | USB 2.0 |
| Product Line | PowerLite |
| Standby Power Consumption | 500 mW |
| Minimum Diagonal Image Size | 29" |
| Vertical Keystone Correction | -30°/+30° |
| Number of HDMI Ports | 1 |
| Projection Method | Front; Ceiling; Rear |
| Input Scan Format | 1080p |
| Speaker Output Mode | Mono |
| Output Scan Format | 720p |
| Application/Usage | Conference; Business |
| number of speakers | 1 |
| brand name | Epson |
| USB | Yes |
| Horizontal Keystone Correction | -30°/+30° |
| average lamp life | up to 4,000 hours |
| Zoom Ratio | 1.6:1 |
| contrast ratio | 3,000:1 |
| Maximum Lens Aperture | F/1.99 |
| Speakers | 1 x mixed channel |
| Platform Supported | PC; Mac |
| ports | DisplayPort; HDMI; RCA; RJ-45; serial RS-232; VGA 15-pin D-sub; USB |
| Native Aspect Ratio | 16:10 |
| Lamp Power | 245 W |
| Color Supported | 16.7 Million Colors (24-bit) |
| HDMI | Yes |
| height | 3.7 in |
| Video Signal Format | SECAM; NTSC; PAL |
| Video Signal Standard | HDTV |
| Minimum Lens Aperture | F/1.51 |
| optical zoom | 1.6x |
| width | 14.8 in |
| package contents | PowerLite 1940W WXGA 3LCD Projector; Power Cable; Computer cable; Projector Remote Control; Batteries; User Manual CD; Quick Setup Sheet; PrivateLine Support Card; Password Protection Sticker; Monitor and Control CD |
| depth | 10.7 in |
| Normal Mode Lamp Life | 2500 Hour |
| Product Name | PowerLite 1940W WXGA 3LCD Projector |
| manufacturer | Epson Corporation |
| Graphic Mode | WXGA |
| weight | 8.50 lb |
| Composite Video | Yes |
| Uniformity | 89% |
| Speaker Output Power | 10 W |
| maximum resolution | 1080p (1920 x 1080) |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| VGA In | Yes |
| Economy Mode Lamp Life | 4000 Hour |
| maximum diagonal image size | 23.33 ft |
| aspect ratio | 16:10 |
| Operating Power Consumption | 311 W |
| HD compatible | yes |
| form factor | Ceiling Mountable; Desktop |
| warranty length | 2-year limited |
| model name | PD4697 |
| image distortion control (keystone correction) | yes |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Videos
See More:
Tour
- 3x Brighter Colors with Epson
- 3LCD -- The #1 projection technology in the world
- WXGA Resolution
- Split Screen
- DICOM Simulation Mode
- MultiPC Display
- Faroudja DCDi Technology
- Quick Corner
- Automatic Vertical Keystone
- Horizontal Keystone Slide Tool
- Connectivity Interface
- USB Plug n' Play
- PC Free Slideshow
- Network Monitor/Control
- Lamp Compartment
- Air Filter Compartment
| Image/Features |
|---|
3x Brighter Colors with EpsonBrilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors. Delivering 4200 lumens of color brightness and 4200 lumens of white brightness, the PowerLite 1940W uses 3LCD, 3-chip technology for brilliant images with true-to-life color.
3LCD -- The #1 projection technology in the world
WXGA ResolutionSee the whole picture with widescreen resolution
Split Screen3 different settings Split screen feature allows you to display two screens simultaneously for collaboration. Show videos, graphs and charts, or documents side by side and toggle display options like shutter video, switch audio, and close caption.
DICOM Simulation ModeIdeal for viewing medical images in grayscale for training and educational purposes.
MultiPC DisplayPresent and share ideas and graphics in a team working environment using MultiPC Projection. This feature allows up to four PCs to be displayed simultaneously on the screen. Toggle and switch between 32 individual PCs connected to a network.
Faroudja DCDi TechnologyAward winning video technology that produces smooth action by de-interlacing the frames and eliminating jagging.
|
Quick CornerUltimate flexibility in adjusting the image of your projector. Simply choose a corner and drag it for a perfectly rectangular image.
Automatic Vertical KeystoneThe projector will automatically adjust for any vertical keystoning of the image.
Horizontal Keystone Slide ToolWith horizontal keystone tool, you do not have to place the projector in the middle of the room. This feature allows you to position the image off to one side of the room, and adjust the image using this horizontal keystone tool.
|
Connectivity Interface
USB Plug n' PlayConnect one cable and you are ready to present.
PC Free SlideshowPC free slideshow allows you to project without having to connect to a PC. You can show Images (JPEG, BMP, GIF, PNG) or PDF from a thumb drive, or simply connect a Document Camera for instant presentations.
Network Monitor/ControlAdministrative tool that can monitor the projector’s operations, while giving the administrator the ability to control its activities.
|
Lamp CompartmentLamp (up to 4000 hours lamp life on eco model) The lamp compartment can be easily accessed while the projector is mounted for easy lamp replacement. Replacement Lamp - V13H010L75
Air Filter CompartmentAir Filter (up to 5000 hours) The Air filter compartment can be easily accessed while the projector is mounted for easy filter replacement Replacement Filter - V13H134S41
|
Click to Start
360° View
Product Features
-
PowerLite 1940W WXGA 3LCD Projector
-
WHY BUY?
Bright Solutions for Smaller Venues.
- 3x Brighter Colors, and reliable performance – 3LCD, 3-chip technology
- One measurement of brightness is not enough -- look for both high color brightness and high white brightness. The PowerLite 1940W has:
- Color Brightness: 4200 lumens (color light output)
- White Brightness: 4200 lumens (white light output) - WXGA (1280 x 800) resolution
- Network monitor and control
- Split Screen display
- Digital HDMI and DisplayPort
- Multi-PC projection
- PC-free presentation, PDF view
- Quick Corner image adjust
- V and H keystoning
-
The best-selling projectors in the world
Epson offers a wide range of high-quality projectors to meet most any need. Built with image quality and reliability in mind, Epson projectors enhance communication and inspire collaboration, while offering a low total cost of ownership. From ultraportable projectors designed for educational settings to boardroom-ready installable business projectors, Epson has the model made for you.
-
IMAGE QUALITY
-
3x Brighter Colors with Epson
Brilliant image quality requires high color brightness (color light output), and Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors.
One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high color brightness and high white brightness. If color brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s color brightness specification.
Get consistent, true-to-life color with Epson, whether you’re projecting images with deep, dark colors or a white screen with text.
-
WXGA (1280 x 800), 16:10 native resolution — for remarkable detail and widescreen convenience
The widescreen PowerLite 1940W is ideal for use with the latest-generation widescreen computers and great for projecting a wide variety of content. Its native 16:10 aspect ratio allows you to fully utilize the capabilities of your widescreen computer, giving you 30% more image area than a 4:3 image.
The PowerLite 1940W also allows you to display 4:3 content without losing image quality.
-
3LCD -- The #1 projection technology in the world
- Up to 3x Brighter Colors
- All 3LCD projectors have 3 chips
- 25% lower power consumption for lower energy costs
- 20 years of road-tested reliability
-
Award-winning Faroudja DCDi Cinema for advanced video quality
Faroudja DCDi Cinema is a video enhancement technology, used primarily for film viewing, that produces exceptional image quality without introducing artifacts. Faroudja developed DCDi (Directional Correlational Deinterlacing) to reduce jagged images by using a unique algorithm. This algorithm, in combination with the technology’s decoding, deinterlacing and enhancement features, won an Emmy Award from the National Academy of Television Arts and Sciences.
-
Advanced color adjustments
Flexible color and image configuration menus allow you to adjust brightness, contrast, color saturation, tint, sharpness and more. Gamma adjustment allows for changing the brightness of the mid-tones of the image. For special projection material such as high-quality photographs or artwork, users can adjust the hue, saturation and brightness for six colors: RGBCMY (Red, Green, Blue, Cyan, Magenta, Yellow).
-
DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
-
CUTTING-EDGE TECHNOLGOY
-
Split Screen feature Multi-PC Projection
Project two images (video or still) side-by-side from two different sources simultaneously. You can choose from three layout options, swap the images/display sizes, choose the source for the audio and even display closed captioning if the source signal includes it.
Epson Multi-PC Collaboration utility allows you to display four individual PC screens simultaneously over the network with up to 32 PCs connected to the same projector. This feature is a great tool for meetings or classroom projects where multiple users can present and share ideas and graphics.
-
Digital DisplayPort and HDMI connectivity
DisplayPort and an HDMI digital display interface enables the projector to easily project digital content including video and audio. Both are compatible with the latest laptops, Blu-ray®, DVD and other media players. Future proof your digital content.
-
ADVANCED NETWORKING
-
Easy Management® with Epson Monitor and Control
EasyMP® technology makes it easy to monitor and control all networked Epson projectors. You can use the utility while performing help desk services and proactively manage your projector assets. Remotely power down your projector(s) to extend the lamp life and produce energy savings. The utility also allows you to set up e-mail notifications, verify and change internal settings, and more. The utility is packaged on a CD with the projector and can be used with a PC to check the status of a projector. It is also available online at Epson.com
-
Crestron® RoomView® compatible
These projectors are compatible with Crestron RoomView, allowing IT managers that have standardized on this popular platform to monitor and control network connected projectors with the same software they use to monitor all other projectors on their network.
-
Message broadcasting
This innovative feature enables you to broadcast customized images/alerts over the network for announcements or instructions. Messages can be sent to up to 1024 projectors simultaneously and will overwrite the current screen content if the projector is being used, unless this function is disabled by the presenter. If the projector is off, message broadcasting will turn the projector on and then display the message.
-
Epson iProjection™ App via Networked Projector
Connect from your wireless iOS device to projectors already on a network. iOS device users can project and share their presentation files, photos and more from their iPad®/iPod®/iPhone® via the Epson iProjection application. For more information, visit www.epson.com/ProjectorApp
-
EASE OF USE
-
PC-free presentations including PDFs
Just plug your USB hard drive into the USB port, and you are ready to display documents and images stored on your USB drive. Present a slideshow without having to connect to a PC. Compatible with the following file formats:- PDF, JPEG, BMP, GIF, PNG
-
Fast, easy setup and control
- USB Plug 'n Play — simply connect your PC to the projector and start presenting
- 1.6x optical zoom — offers great positioning flexibility to fit large or small rooms
- A/V Mute Slide — control your presentation; it’s right at your fingertips
- Sleep Mode — set from 1 to 30 minutes to save energy when the A/V Mute Slide is closed or no signal is detected
- Direct Power On/Off — power the projector on and off with the flip of a wall switch
- Instant Off® — no cool down time required, so it is ready to shut down when you are
-
ECO FEATURES
- Energy-efficient 3LCD, 3-chip technology
- Recyclable product
- Epson America, Inc. is a SmartWaySM Transport Partner
-
-
Compare
|
|
|
|
|
|
| PowerLite 1835 | PowerLite 1940W | PowerLite 1945W | PowerLite 1955 | PowerLite 1960 | |
|---|---|---|---|---|---|
| Basics | |||||
| Color Brightness (Color Lumens)1 | 3500 lumens | 4200 lumens | 4200 lumens | 4500 lumens | 5000 lumens |
| White Brightness (White Lumens)1 | 3500 lumens | 4200 lumens | 4200 lumens | 4500 lumens | 5000 lumens |
| Native Resolution2 | XGA | WXGA | WXGA | XGA | XGA |
| Throw Ratio |
1.38 Wide 2.24 Tele |
1.38 Wide 2.24 Tele |
1.38 Wide 2.24 Tele |
1.38 Wide 2.24 Tele |
1.38 Wide 2.24 Tele |
| Power Consumption | 355W | 311W | 311W | 353W | 353W |
| Value-Added Features | |||||
| Built in Speaker (Watts) | 16W | 10W | 10W | 10W | 10W |
| Closed Captioning |
|
|
|
|
|
| A/V Mute Slide Door |
|
|
|
|
|
| Split Screen |
|
|
|
|
|
| Easy Connectivity & Setup | |||||
| Epson iProjection™ / iOS Compatible |
|
|
|
|
|
| Screen Fit |
|
|
|
|
|
| Horizontal & Vertical Keystone | Manual / Auto | Manual / Manual | Auto / Auto | Auto / Auto | Manual / Manual |
| LAN Networking & Control | |||||
| Wireless3 |
Optional (802.11 b/g/n) |
|
Included (802.11 b/g/n) |
Included (802.11 b/g/n) |
|
| Multi-PC Projection |
|
|
|
|
|
| Connections | |||||
| Display Port |
|
Display Port x 1 | Display Port x 1 | Display Port x 1 | Display Port x 1 |
| ** Listed here are only those specifications where these models differ ** | |||||
More Info
-
Color Brightness Test Data
Color Brightness Test Data - opens PDF
PDF, 623K, 19 pages
-
Learn about Color Brightness
Learn about Color Brightness - opens PDF
PDF, 1.45MB, 2 pages
-
Color Brightness White Paper
Color Brightness White Paper - opens PDF
PDF, 305K, 5 pages
-
PowerLite 1940W Product Specifications
PowerLite 1940W Product Specifications - opens PDF
-
Learn About Color Brightness
Learn About Color Brightness - opens PDF
PDF, 1.45MB, 2 pages
-
Projector Resolution Guide
Projector Resolution Guide - opens PDF
PDF, 502K, 1 page
-
Road Service Program
Road Service Program - opens PDF
PDF, 828K, 1 page
- 1 Light output varies depending on modes (color light output and white light output). White light output measured using ISO 21118.
- 2 WXGA (1280 x 800), XGA (1024 x 768), SVGA (800x600).
- 3 All wireless is 802.11 b/g/n.
